POLYETHYLENE PUMP STATIONS

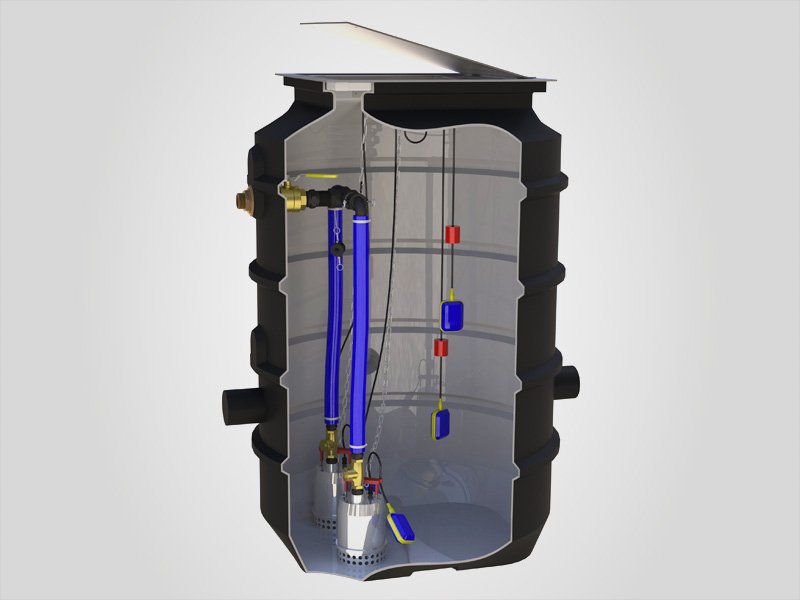

DrainAce Polyethylene Pump Stations

The DrainAce Polyethylene Pump Station is an ideal solution for sewer, effluent, and stormwater applications, providing reliable drainage for both residential and commercial systems. Known for its customisation, durability, cost-effectiveness, and fast distribution, the DrainAce Poly is one of our most popular pumping stations.



Included Components:



  • Chamber: Constructed from durable, lightweight, chemical-resistant polyethylene, available in various sizes to suit your storage needs.
  • Cover Options: Covers suited for pedestrian and/or vehicle traffic , ensuring strength and durability for your installation.
  • Pumps:

Grinder Pumps for macerating large solids in wastewater.

Cutter Pumps for cutting and handling smaller solids in wastewater

Chockeless Pumps for high-efficiency, low-maintenance operation

Vortex Pumps for high-volume stormwater handling with solids



Available in single or dual pump configurations, tailored to your system requirements.



  • Alarm Systems: Option of either a High-Level Alarm for single pump operations or a control system for a dual pump set-ups. Both alarm include audible and visual alarms for enhanced monitoring and safety.

GALLERY

placeholder_200x200
placeholder_200x200
placeholder_200x200
placeholder_200x200
INDUSTRY SUPPORT

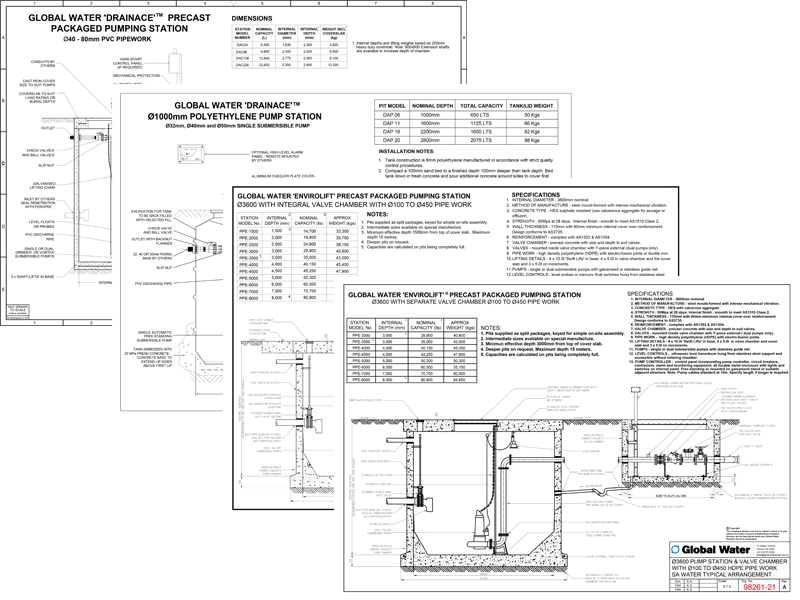

Register now for access to our product drawing library

You will be granted permission to view our PDF and DWG files of selected pump stations and pressure systems.

Drawings-CTA
placeholder_200x200
placeholder_200x200

FEATURES

APPLICATIONS

The DrainAce Compact is commonly found in restaurants, basements of high-rise buildings, boardrooms, laboratories, doctor or dental surgeries, construction sites and portable buildings. Units are also available for greasy waste discharge from grease arrestors.

APPLICATIONS


Global Water’s DrainAce Poly Pump Stations are commonly found in the following applications:

  • domestic/commercial sewage, septic and effluent
  • industrial waste and washdown
  • stormwater
  • tradewaste treatment
  • rainwater harvesting
  • solids settling
  • buffer pits
  • bund areas and spill control

DOWNLOADS

VIDEOS

DOWNLOADS

For pit and pump specifications for sewer stations and stormwater stations, download the brochure.

DRAINACE Poly Pump Station

DRAINACE Poly Pump Station Tech Data

1PRODUCT INFORMATION


The DrainAce Polyethylene Pump Station includes the following:

Polyethylene chamber:

Polyethylene is a resilient, light-weight material with excellent chemical resistance and is extremely strong. These polyethylene pits can also be used as pH correction and buffer pits in trade waste treatment systems, holding tanks in tank farms and bunded areas, stormwater detention chambers, dump tanks in waste and wastewater treatment systems.

Cover options:

There are a wide variety of cover options available, including light-duty hinged aluminium covers and light or heavy-duty cast-iron covers and hot dip galvanized grates.

Pump/s:

The Global Water range of submersible pumps provide a dependable solution for a wide range of domestic, commercial and industrial pumping applications. These pumps can be arranged in either single or twin configurations, with units available in automatic or manual versions. Cutter/grinder mechanisms or chokeless impellers are available for sewage, and semi-open or vortex impellers for stormwater and effluent.

Control panels:

For both single and dual pump systems with audible and visual alarms are available is required.



Features:

  • cost effective and easy to install
  • department of health approved
  • compliant with AS 3500 and AS 1546
  • assembled and despatched within 7 days
  • multiple preformed spigots for easy pipe installation



Polyethylene sewer/stormwater pump stations - Pit specifications

Pit model Pump station type Capacity (L) Diameter (mm) Internal depth (mm) Weight (kg) Inlet invert from surface (mm)
DAP01 sewer 175 7102 660 8 400
DAP02 sewer/stormwater 280 7102 960 16 700
DAP05 sewer/stormwater 500 700 1400 28 1000
DAP06 sewer/stormwater 650 1000 1000 50 500
DAP07* sewer 650 1000 1200 45 700
DAP10* sewer 1000 1000 1700 60 1200
DAP11 sewer/stormwater 1125 1000 1600 66 1100
DAP14* sewer 1450 1000 2300 75 1800
DAP16 sewer/stormwater 1600 1000 2200 82 1700
DAP20 sewer/stormwater 2075 1000 2800 120 2300
DAP30* sewer/stormwater 3000 1650 2050 250 1650
DAP50* sewer/stormwater 5000 1800 2400 375 2000
DAP61* sewer/stormwater 6100 1950 2300 330 1000

*Department of Health approved for effluent use.

Polyethylenevsewer/stormwater pump stations - Cover types (gas-tight)

Reference number Pump station Loading Type
LSP Sewer No traffic Plastic (DAP05, 30, 50)
LSHA Sewer/Stormwater Pedestrian Aluminium - gas-tight
LSCI Sewer/Stormwater Light duty Cast iron*/ Gas-tight cover*
HSCI Sewer/Stormwater Heavy duty Cast iron* / Gas-tight cover*
LSGG Stormwater Light duty Galvanised grate
HSGG Stormwater Heavy duty Galvanised grate*

*Requires load-bearing concrete surround



Put some clear and concise content in here. Keep your reader in mind. What are they trying to do? What are they hoping to learn? Why are they reading this? Help them out and use the tone and voice of your organization.

Put some clear and concise content in here. Keep your reader in mind. What are they trying to do? What are they hoping to learn? Why are they reading this? Help them out and use the tone and voice of your organization.

INDUSTRY SUPPORT

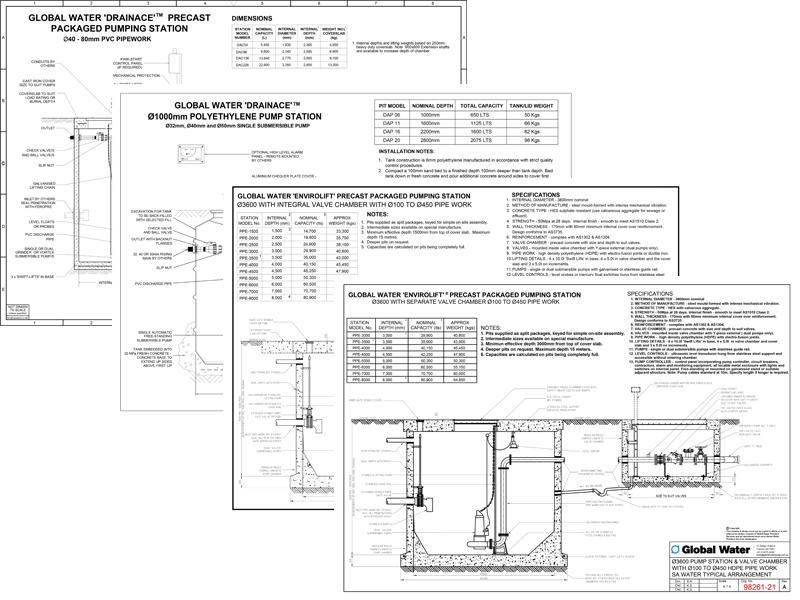

Register now for access to our product drawing library
