PUMP STATIONS

DrainAce Compact Undersink Pump Station

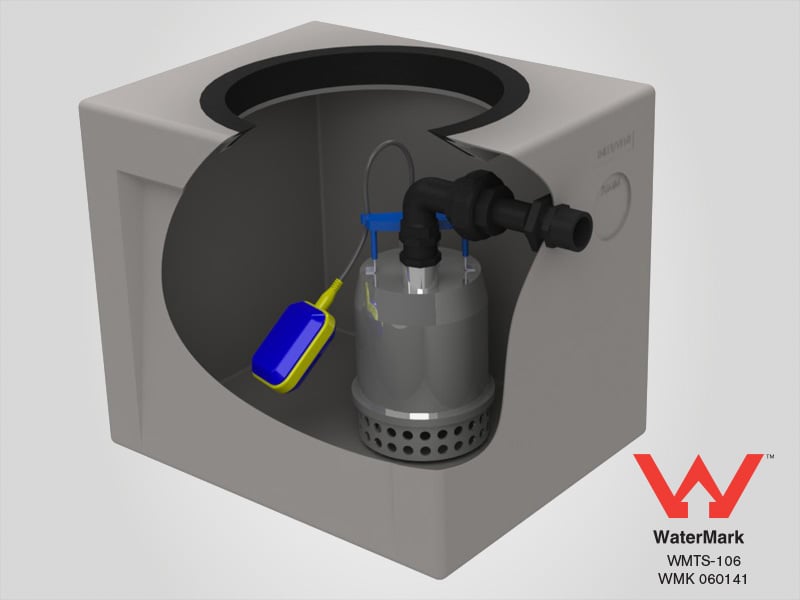

The DrainAce Compact undersink pump station is a small, simple-to-install undersink pump station. It is built out of high-quality material and is practical for a wide range of applications. Components include: 90 L polyethylene chamber, single-phase submersible automatic pump, internal pipework and isolation valves. All are packaged into a pump system that will fit under your typical basin.

Key features of this undersink pump station include:

  • 90 L chamber moulded from chemical resistant polyethylene for easy install and maintenance
  • versatile stainless-steel pump capable of passing up to 10 mm soft solids
  • quick-release waterproof electrical connection for easy pump removal
  • runs with little noise
  • capable of pumping trade waste to the sewer discharge point when gravity fall is not available
  • capable of handling discharge up to 40 ºC, but will handle up to 80 ºC intermittently

GALLERY

placeholder_200x200
placeholder_200x200
placeholder_200x200
placeholder_200x200
INDUSTRY GUIDE

7 Things to Know Before Buying a Pump Station

Discover everything there is to know before buying a pump station in our eBook download. Gain insights into the selection process, understand and be able to answer technical questions and learn about the different varieties on offer.

GW_CTA-7-things-to-know-beforebuying-a-pump-station
placeholder_200x200
placeholder_200x200

FEATURES

APPLICATIONS

The DrainAce Compact is commonly found in restaurants, basements of high-rise buildings, boardrooms, laboratories, doctor or dental surgeries, construction sites and portable buildings. Units are also available for greasy waste discharge from grease arrestors.

APPLICATIONS

The DrainAce Compact is commonly found in restaurants, basements of high-rise buildings, boardrooms, laboratories, doctor or dental surgeries, construction sites and portable buildings. Units are also available for greasy waste discharge from grease arrestors.

DOWNLOADS

VIDEOS

DOWNLOADS

DRAINACE Compact

PRODUCT INFORMATION

The chamber is moulded from chemical-resistant polyethylene and fitted with a rugged stainless steel 240 V Global Water automatic submersible pump.

Specifications



Model

Pump size

Solid size  (mm)

Volts (V)

Power (kW)

Amps (A)

 Outlet (mm)

GPD200

GPD32-25

10

240

0.25

1.9

32

GPD300

GPD32-55

10

240

0.55

3.5

32

Put some clear and concise content in here. Keep your reader in mind. What are they trying to do? What are they hoping to learn? Why are they reading this? Help them out and use the tone and voice of your organization.

Put some clear and concise content in here. Keep your reader in mind. What are they trying to do? What are they hoping to learn? Why are they reading this? Help them out and use the tone and voice of your organization.

Put some clear and concise content in here. Keep your reader in mind. What are they trying to do? What are they hoping to learn? Why are they reading this? Help them out and use the tone and voice of your organization.

Enquire here for more information or to request a quote:
